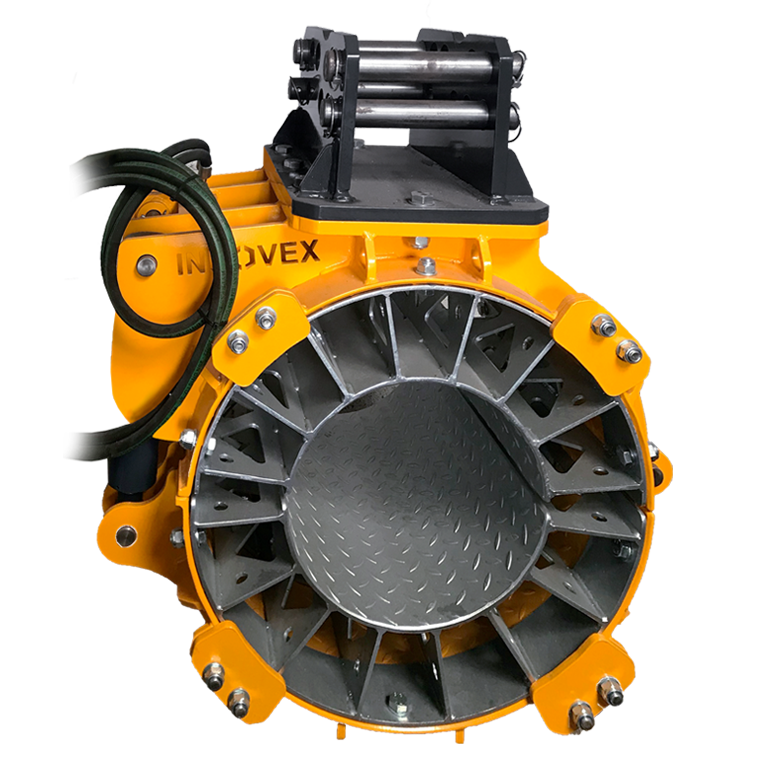

630MM INNOVEXPIPE PUSHER™
Changing the way pipes and cables are inserted throughout the utility
sector. The Innovex Pipe Pusher excavator attachment offers a safer and
more compliant way of inserting new PE pipe, approved to work on both live
and dead insertion. By simply attaching the Pipe Pusher to the excavator’s
arm, you remove the manual handling and injury risks associated with
pipe insertion.
The Pipe Pusher is fully operated from the
safety of the excavator cab. The Pipe Pusher is
compatible for the use with all large excavators
from 8 tonnes to 24-tonne excavators and can
also, be used for slip lining/manoeuvring &
re-rounding pipe diameters up to 630mm / 24″.
BENEFITS
- Efficient, easy mounting installation, faster than winching
- Durable & robust, suitable for harsh environments
- Action can be reversed to pull back if an obstruction is met, not possible with other insertion methods
- Lightweight and compact design for ease of storage and transportation
- Safe practice for dead or live insertion
- The 630mm / 24″ model comes with a range of Shim inserts enabling use on 400mm / 16″, 450mm /18″ and 500mm / 20″ pipe too. Giving the best possible gripping and releasing system across the market even in all conditions
- Eliminates manual handling creating the compliant solution for inserting PE pipe
SIZES
630mm /
24”
- Bespoke Models available, designed to accommodate your specialist requirements.
Attaches to large excavators e.g. 8 tonnes, 13 tonne etc.
| Model | 180mm | 400mm | 630mm | 800mm |
|---|---|---|---|---|
| Typical Excavator Size | 1.5T-5T | 5T-20T | 9T-24T | 8T-35T |
| Minimum Pipe Diameter | 55mm | 180mm | 400mm | 500mm |
| Maximum Pipe Diameter | 180mm | 400mm | 630mm | 800mm |
| Weight | 44kg | 470kg | 700kg | 950kg |
| Average Pushing Speed | 12m/min | 12m/min | 12m/min | 12m/min |
| Average Lengths Pushed | 150-900m | 150-500m + | 150-500m + | 150-500m + |
| Height (without head-bracket) | 220mm | 600mm | 800mm | 1200mm |
| Height (with head-bracket) | 260mm | 740mm | 920mm | 1600mm |
